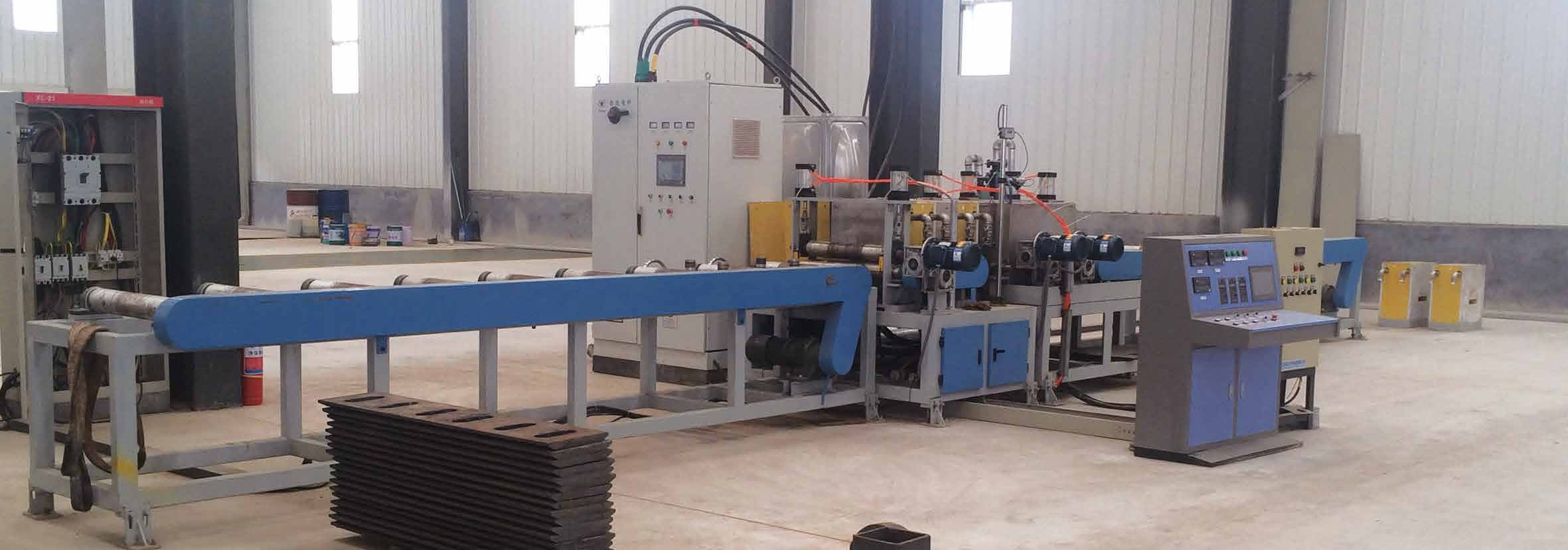

Heat Treatment and Tempering Production Line of Construction Machinery Cutter Angle Plate

keyword:

Categorie:

Products

Heat Treatment

Heat Treatment and Tempering Production Line of Construction Machinery Cutter Angle Plate

Support:

sales@cnmelt.com

Send Inquiry

Chat Now!

hiddenValue

Product description

Power supply system: Quenching 300KW-1000KW/0.5-4.0KHz, Tempering 160KW-600KW/0.5-2.5KHz.
Workpiece outer diameter: ① Flat plate 152X16 203X16 203X19 254X19 254X25 200X19 200X25 300X30 330X30 304X40 406X40 406X45 330X40 330X35 330X32 Curved plate 152X13 152X16 203X16 203X19 152X19 203X25
Workpiece length: 0.5 m- 3.5 m.
Conveyor roller: The roller axis forms a certain angle with the workpiece axis, and the flat roller conveyor feeds at a uniform speed to make the heating more uniform. The rollers between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled, and the rollers in other parts are made of 45# steel and surface quenched.
Roller grouping: The feeding group, sensor group, and discharging group are controlled independently, which is conducive to continuous heating without gaps between workpieces.
Automatic temperature control: Infrared thermometers are used for quenching and tempering, and they form an automatic control system with the PLC system to accurately control the temperature.
Industrial computer system: Real-time display of the current working parameters, workpiece parameter memory, storage, printing, fault display, alarm, and other functions.

Why Choose Ruixinsheng Technology?

Independent Intellectual Property Rights:

Master the core technology and independent research and development of internationalleading induction heating system.

Energy-Saving and Efficient:

Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.

Environmental Protection and Safety:

Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.

Stable and Reliable:

The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.

Intelligent Control:

Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
