Product description

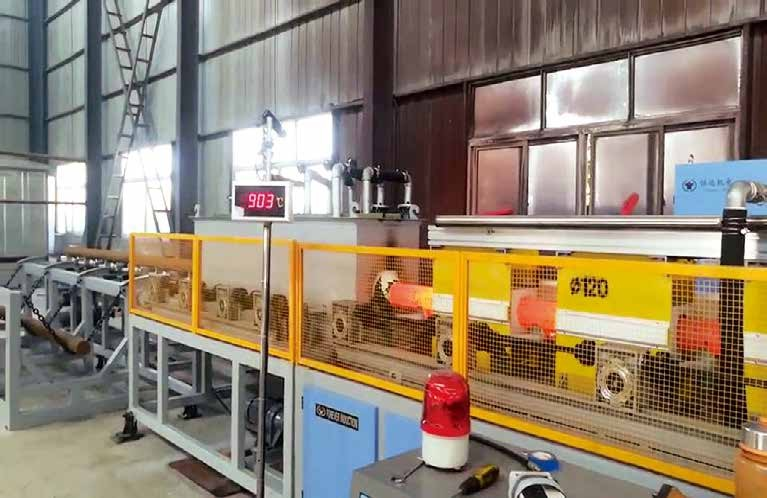

●Main purpose: Suitable for heat treatment of wear-resistant steel bars of rod mill, suitable for diameter ø50-ø140, length 2.2m-6m, hourly output 1.5 tons-3.0 tons.
●Power supply system: 350KW-1000KW/0.5-2.5KHz.
●Conveyor roller: The roller axis forms a certain angle with the workpiece axis. The workpiece rotates while feeding at a constant speed to make the heating more uniform. The roller between the furnace body is made of 304 non-magnetic stainless steel and water-cooled. The rollers in other parts are made of 45 steel and surface quenched.
●Roller grouping: The feeding group, sensor group and discharging group are independently controlled, which is conducive to continuous heating without gaps between workpieces.
●Automatic temperature control: Infrared thermometers are used for quenching and tempering, and they form an automatic control system with the PLC system for precise temperature control.
●Industrial computer system: Real-time display of the current working parameters, workpiece parameter memory, storage, printing, fault display, alarm and other functions.

Why Choose Ruixinsheng Technology?

Independent Intellectual Property Rights:

Master the core technology and independent research and development of internationalleading induction heating system.

Energy-Saving and Efficient:

Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.

Environmental Protection and Safety:

Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.

Stable and Reliable:

The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.

Intelligent Control:

Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
