Aluminum Shell Melting Furnace
hiddenValue
- Product description
-
Application
Mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold, silver), etc. The equipment is used in metallurgical industry, casting industry, non-metal smelting and other industries.

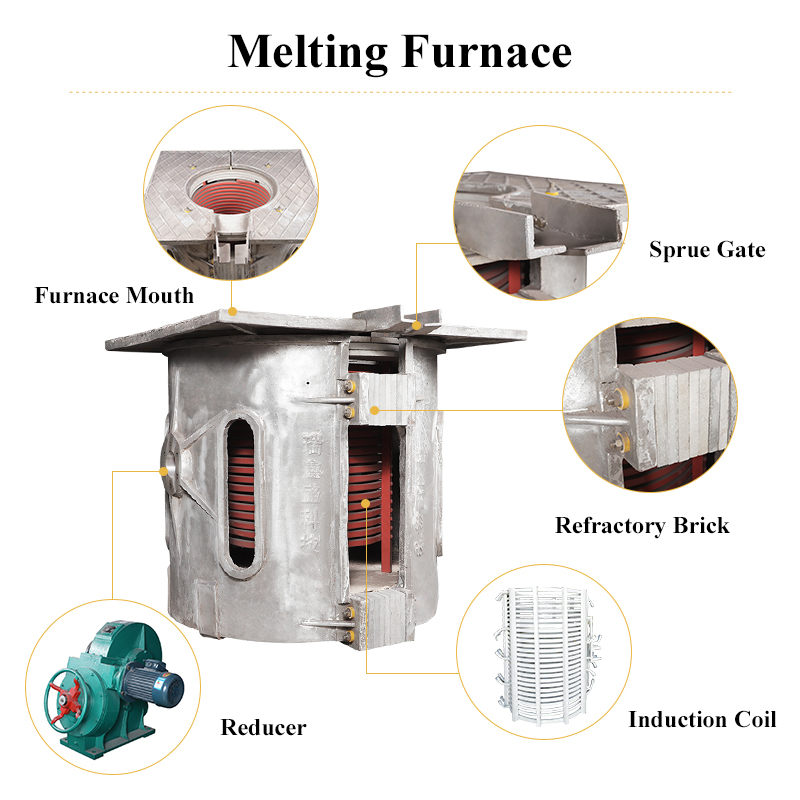

Aluminum shell
Adopting reduction gears tilting furnace device. The furnace body is made of alloy aluminum foundry casting. Simple operation, easy maintenance, convenient observation.

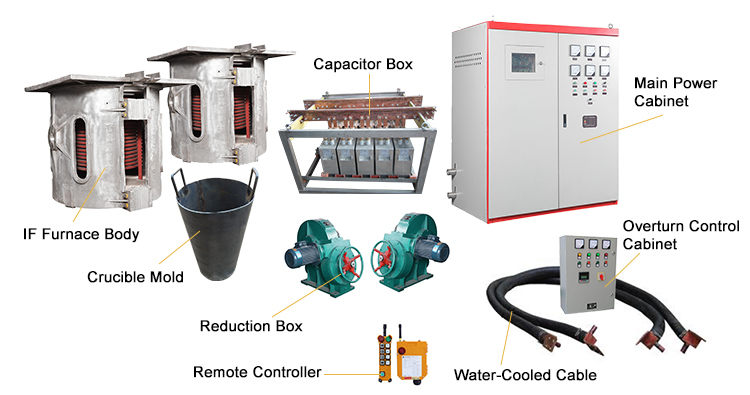

The aluminum shell furnace is composed of reduction gears, bracket and induction coil, etc. Mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold, silver), etc. The equipment is used in metallurgical industry, casting industry, non - metal smelting and other industries.
Products advantage
1. Good stability, low cost, smaller area occupied.
2. Easy to operate, fast melting and low production cost.
3. Simple structure, easy maintenance.
4. Can be directly melted from the cold furnace, solution can be all empty, easy to replace the type of molten material.
5. Low noise, good working environment.
6. Tailor-made according to the different melting metal.
7. Induction coil of various specifications, reasonable selection of copper tube wall thickness and specifications, so as to improve the utilization rate of electrical energy.
8. High performance insulation materials are used.
9. The turn-to-turn gap of the induction coil is convenient for maintenance and conductive to the release of water vapor.
Smoke collecting device can be used to improve working environment.

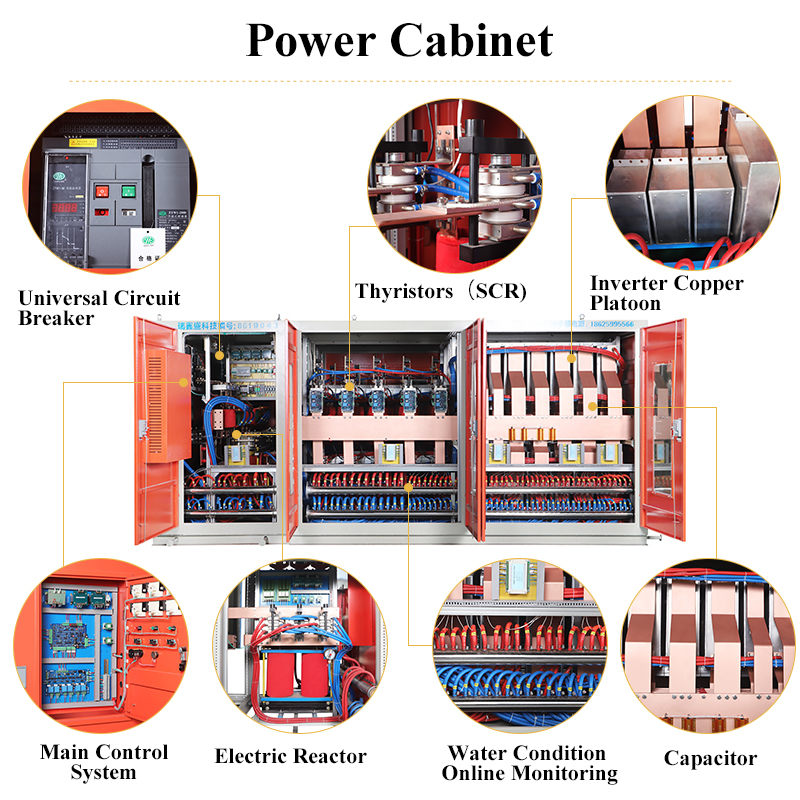

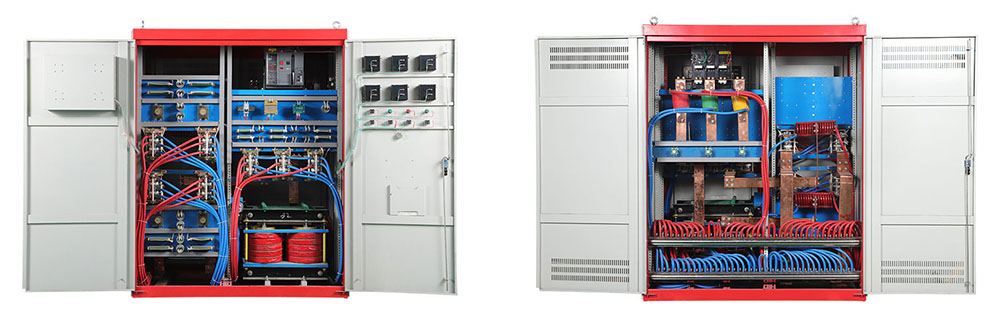

Power Supply
This melting furnace can realize fully automatic remote control, including PLC programmable controller, HMI man-machine interface or industrial control computer system, industrial control configuration software and various sensors. It can realize automatic operation, such as automatic constant temperature, automatic oven and furnace leakage alarm, which is safer and more convenient to use.
The power advantage
1. Through a single power supply device, realize the mass production capacity of multiple furnaces.
2. Uninterruptible melting and accurate thermal insulation or overheat temperature control.
3. It can preheat, sintering, melting and ultra-low power insulation for multiple electric furnaces at the same time.
4. Each furnace adopts independent control system.
5. Can provide full constant power to one furnace while isolating the other under maintenance.
6. Just one set of power connection and water connection, greatly reducing installation, operation and maintenance costs.
7. The latest generation of digital operation technology, Single Clip Microcomputer program control.
8. Lower starting frequency, ultra-low power oven.
9. Full open rectifier, high power factor, Higher harmonics are small.
10. The equipment power utilization rate is close to 100%.
11. Liquid metal is more productive and does not need to increase electricity demand.
12. It can produce efficiently and match different metal liquid demand levels.
13. Optical fiber transmission trigger signal, electronic control using digital mode.
14. Very competitive power consumption indicator.
15. Comply with domestic and international electrical safety design standards.
16. More perfect and intelligent protection function.
Technical parameters of IFinduction melting furnace
Rated capacity (t)
Rated power (KW)
Rated frequency (HZ)
Transformer configuration
Pulses
IF voltage
Melting rate(t/h)
Energy consumption (kWh/t)
Capacity (KVA)
Secondary voltage (V)
(V)
0.25
250
1000
315
3φ380V
3
1500
0.25
700
0.5
400
1000
500
3φ380V
3
1500
0.5
660
0.75
600
1000
800
3φ380V
3
1500
0.75
650
1
800
1000
1000
3φ380V
3
1500
1
630
1.5
1200
500
1500
3φ660V
3
2400
1.5
620
2
1500
500
1600
6φ660V
6
2400
2
610
3
2200
500
2500
6φ660V
6
2400
3
610
5
3500
500
4000
6φ1000V
6
3200
5
600
8
5000
500
6000
6φ1000V
6
3200
8
600
10
6300
500
7000
6φ1000V
12
3200
10
600
15
9000
250
2×5000
2×6φ1000V
24
3200
12
565
20
11000
250
2×6300
2×6φ1000V
24
3200
15
560
30
14000
150
2×8000
2×6φ1000V
24
3200
20
550
40
18000
150
2×10000
2×6φ1000V
24
3200
25
540
50
20000
150
2×11000
2×6φ1000V
24
3200
30
530
60
22000
100
2×12000
2×6φ1150V
24
4000
35
520
70
25000
100
2×13000
2×6φ1400V
24
4600
45
510
Why Choose Ruixinsheng Technology?
Independent Intellectual Property Rights:
Master the core technology and independent research and development of internationalleading induction heating system.
Energy-Saving and Efficient:
Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.
Environmental Protection and Safety:
Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.
Stable and Reliable:
The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.
Intelligent Control:
Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
