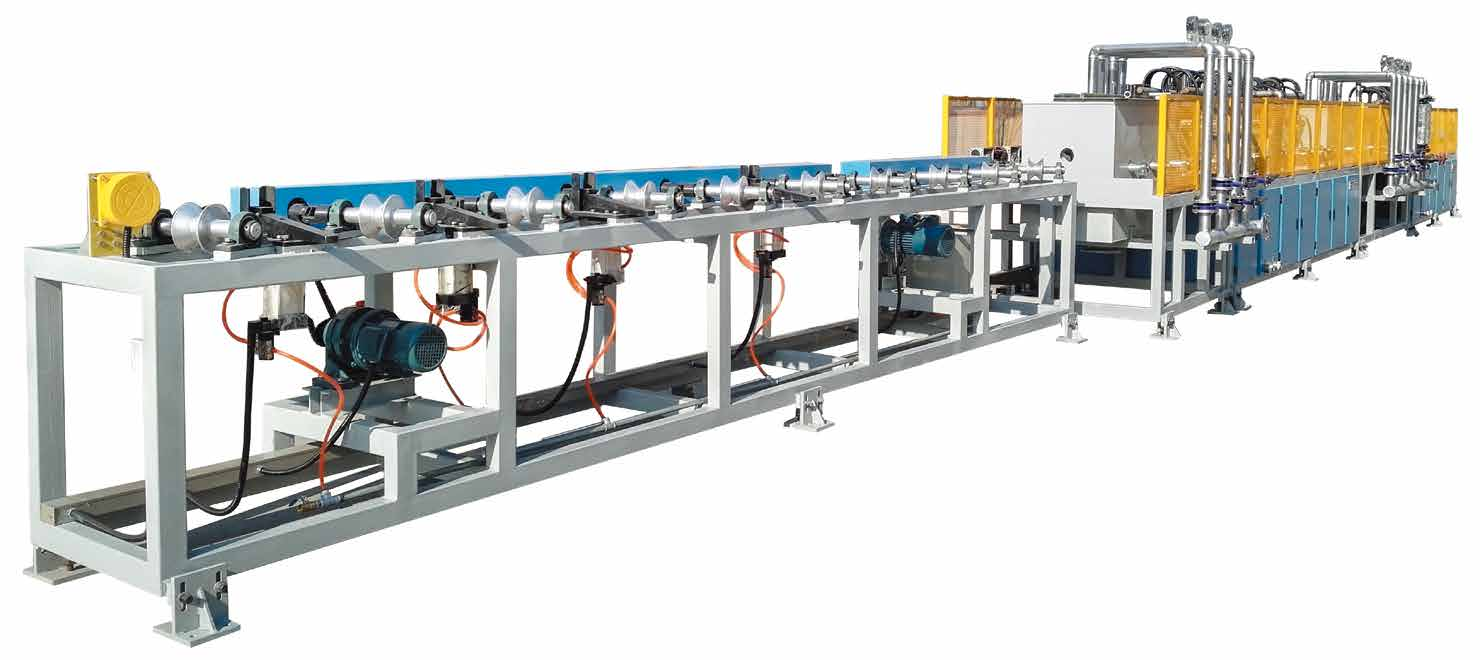

Product description

● Main purpose: Mainly used for high-strength fine-rolled threaded steel bars. Through quenching and tempering heat treatment, the various properties of fine-rolled threaded steel bars meet the requirements of PSB930 and PSB1200 in the national standard GB/T20065-
2006.
● Power supply system: Quenching power supply: 160-1000KW/1-8KHz; tempering power supply: 100-600KW/1-8KHz, hourly output 0.5-3.5 tons, applicable range ø20-ø50.
● Conveying roller: The roller axis forms a certain angle with the workpiece axis, while moving forward at a constant speed to make the heating more uniform. The roller between the furnace body is made of 304 non-magnetic stainless steel and is water-cooled.
● Roller grouping: The feeding group, sensor group, and discharging group are independently controlled, which is conducive to continuous heating without gaps between workpieces.
● Automatic temperature control: Infrared thermometers are used for quenching and tempering, and they form an automatic control system with the PLC system to accurately control the temperature.
● Industrial computer system: Real-time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm, and other functions.

Why Choose Ruixinsheng Technology?

Independent Intellectual Property Rights:

Master the core technology and independent research and development of internationalleading induction heating system.

Energy-Saving and Efficient:

Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.

Environmental Protection and Safety:

Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.

Stable and Reliable:

The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.

Intelligent Control:

Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
