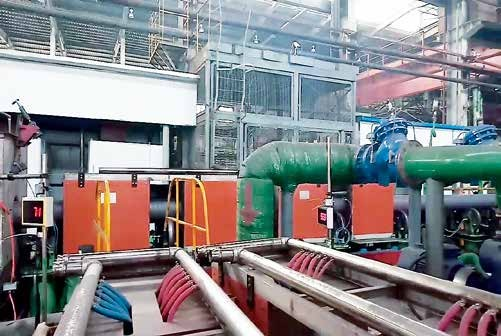

Large diameter seamless steel tube induction heating and tempering heat treatment production line

Support:

sales@cnmelt.com

Send Inquiry

Chat Now!

hiddenValue

Product description

●Main use: Suitable for quenching, quenching and tempering heat treatment of inner and outer walls of large-diameter steel pipes and oil casing.
●Power supply system: quenching 750KW-3500KW/0.5-4KHz, tempering 400KW-1600KW/0.5-2.5KHz, hourly output 2.5-10 tons.
●Scope of application: ø320-ø1000.
●Conveying roller transmission: The rotation speed is greater than the roller speed, which improves the linearity of the steel pipe.
●Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; flexible design of speed difference output, segmented control of operating speed.
●Formula management function: A powerful formula management system, after entering the steel type, outer diameter, and wall thickness parameters to be produced, automatically calls the relevant parameters, and no longer needs to manually record, check, and enter the parameter values required for various workpieces.
●Multi-channel closed-loop function: Because of the extremely unstable power supply system in underdeveloped areas and countries, high-level temperature, voltage, and other automatic control systems are designed. When the power supply voltage fluctuates up to ±20%, the product process can still be highly consistent

Why Choose Ruixinsheng Technology?

Independent Intellectual Property Rights:

Master the core technology and independent research and development of internationalleading induction heating system.

Energy-Saving and Efficient:

Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.

Environmental Protection and Safety:

Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.

Stable and Reliable:

The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.

Intelligent Control:

Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
