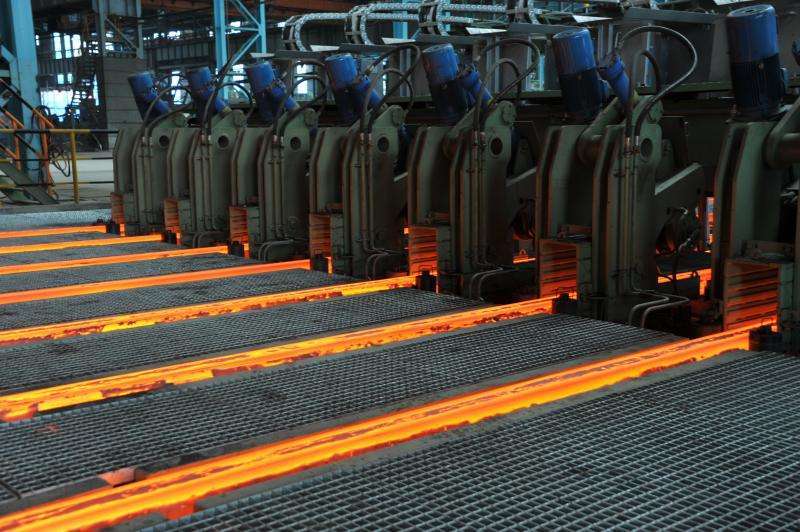

Continuous Casting Machine

Continuous casting machine production process. Continuously pour high-temperature molten steel into one or a group of water-cooled copper crystallizers.

hiddenValue

  • Product description
  • Overview

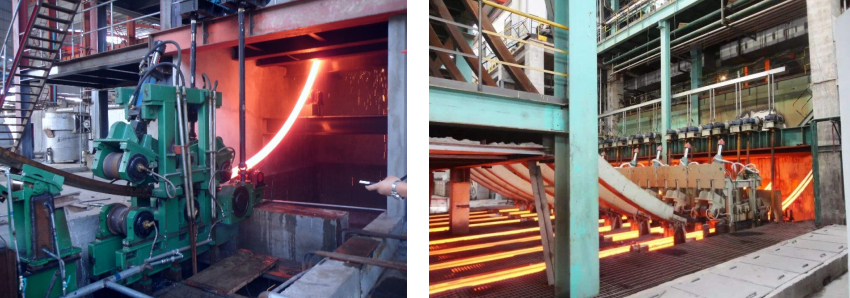

    Continuous casting machine production process. Continuously pour high-temperature molten steel into one or a group of water-cooled copper crystallizers. The molten steel gradually solidifies along the periphery of the mold to form a billet shell. When the liquid steel level rises to a certain height and the billet shell solidifies to a certain thickness, the drawing and leveling machine pulls the billet out, and sprays water in the secondary cooling zone to completely solidify the cast billet. The cutting device cuts the billet to length according to the steel rolling requirements. This process of pouring high-temperature molten steel directly into billets is called continuous casting.

    Continuous casting machine



    Structure and composition

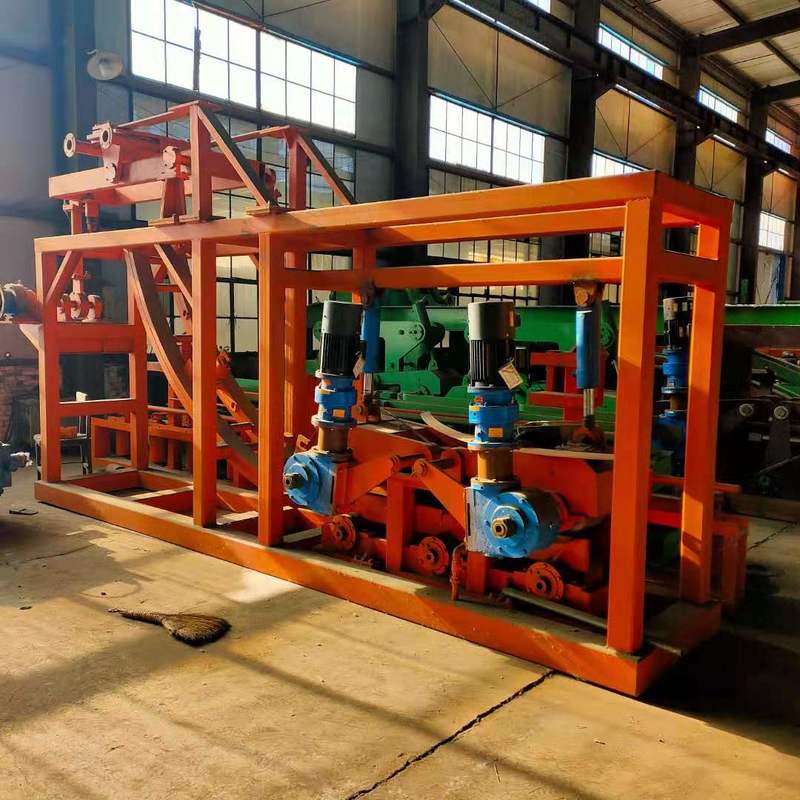

    The continuous casting machine consists of molten steel carrying device (ladle), tundish, crystallizer and its vibration device, nip roll and cooling water system in the secondary cooling zone, pulling straightener, cutting device, and dummy device, Cooling bed and other components.



    Specification

    CCMRadius

    FittedBilletSize(mm)

    AverageHourlyOutputPerStrand(ton)

    AnnualOutputPerStrandForReference(ton)

    R3m

    60×60/φ60

    3.9

    23,000

    80×80/φ80

    6.9

    42,000

    90×90/φ90

    8.8

    53,000

    100×100/φ100

    10.8

    65,000

    R4m

    80×80/φ80

    6.9

    42,000

    90×90/φ90

    8.8

    53,000

    100×100/φ100

    10.8

    65,000

    120×120/φ120

    15.6

    94,000

    R5.25m

    100×100/φ100

    10.8

    65,000

    120×120/φ120

    15.6

    94,000

    125×125/φ125

    16.9

    102,000

    130×130/φ130

    18.3

    110,000

    150×150/φ150

    24.4

    146,000

    R6m

    100×100/φ100

    13.2

    79,000

    120×120/φ120

    19.0

    114,000

    125×125/φ125

    20.6

    124,000

    130×130/φ130

    22.3

    134,000

    150×150/φ150

    29.7

    178,000

    160×160/φ160

    33.8

    203,000

    ......



Why Choose Ruixinsheng Technology?

Independent Intellectual Property Rights:

Master the core technology and independent research and development of internationalleading induction heating system.




Energy-Saving and Efficient:

Meet international standards for electrical and load design standards, power factor up to0.98, and energy saving 20%.




Environmental Protection and Safety:

Furnace structure according to the national standards, scientific and technologicalreasonable personalized design, ensure the safety and reliability of the device.




Stable and Reliable:

The world's first-class component selection, scientific and reasonable equipmenttechnology, complete protection functions, the primary fault is close to zero.




Intelligent Control:

Equipment management system, can achieve production management, quality control andother functions, to achieve remote diagnosis of equipment, data acquisition, transmissionand other monitoring.
